Monocular Indirect Ophthalmoscope on Eyeglass Frame Fundus Boy

Unique Indirect Ophthalmoscope for Funduscopy with Scleral Depression

- Procedures such as scleral depression can be performed with one hand free
- As light as 60 g, reduces fatigue at long time operation

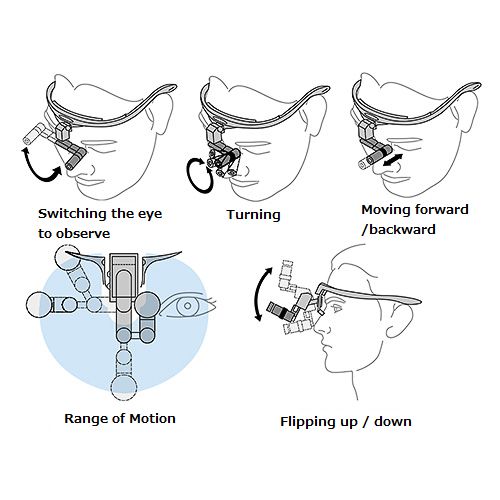

- Observation at the best position by the multi-jointed hinge
- The LED with the color of incandescent allows comfortable observation
- Flipping up and down the hinge switches the illumination
- 17 hours of continuous illumination with the energy-efficient LED

Contents

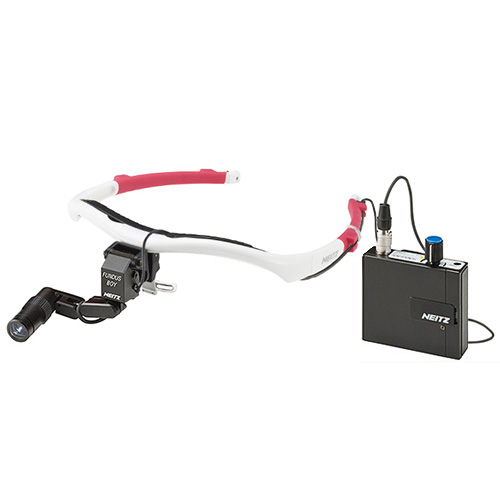

Fundus Boy, battery pack, AC adapter

Light Source

3W LED

Voltage during Illuminating

DC3.2V　0.3W

Diameter of the Illumination Field

Continuously variable from 15 mm to 50 mm
(at the 500 mm from the front end of the illumination)

Weight

Main Body: Approx. 60 g
Total weight (including cable): Approx. 90 g

Battery Pack

Output: Constant current + PWM control
Maximum Light Intensity: Approx. 10 hours
Medium Light intensity: Approx. 17 hours
Battery: Rechargeable Ni-MH battery
Charging Time: Approx. 2.5 hours
Battery Life: Approx. 1500 cycles
Dimensions: 72.5 mm x 65 mm x 20 mm (projections not included)
Weight: 140 g

Frame

Frame: available in three colours (black, silver, or white)
Ear pads: Available in seven colours (black, gray, pink, yellow, green, blue or navy)
