Binocular Loupes

Step 1Select the loupes from the comparison table

Galilean Loupes

BLS-1, BLS-2, BLS-3, BLD-3
  • - Best for surgery and treatment require magnification of 2x to 3x
  • - The bright field of view provides easy steropsis
  • - Easy and comfortable to use
  • - Adjustable observation distance by rotating the lens barrel
  • - BLD-3 is best for surgery and treatment at close distance, for example use in dental practice
BLS-1 BLS-2 BLS-3 BLD-3
Pictures
Magnification 1.5x to 2.0x 2.0x to 2.5x 2.5x to 3.0x 2.5x to 3.0x
Working Distance (mm) 550 to 350 550 to 350 550 to 350 350 to 250
Field of View Diameter (mm) Ф145 to 120 Ф113 to 58 Ф78 to 38 Ф80 to 50
BLS-1
Magnification 1.5x to 2.0x
Working Distance (mm) 550-350
Field of View Diameter (mm) Ф145 to 120
BLS-2
Magnification 2.0x to 2.5x
Working Distance (mm) 550 to 350
Field of View Diameter (mm) Ф145 to 120
BLS-3
Magnification 2.5x to 3.0x
Working Distance (mm) 550 to 350
Field of View Diameter (mm) Ф78 to 38

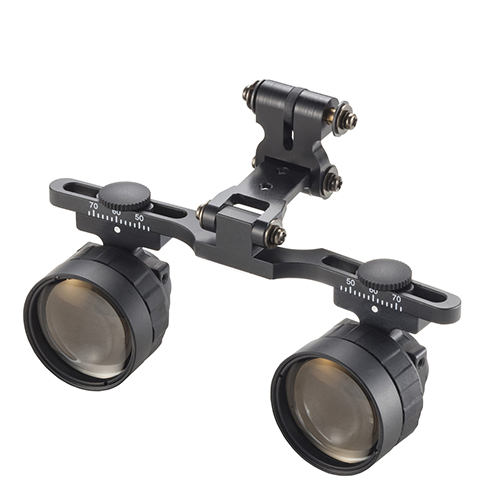

BLD-3
Magnification 2.5x to 3.0x
Working Distance (mm) 350 to 250
Field of View Diameter (mm) Ф80 to 50

Prismatic Loupes

BLP-4,BLP-6
  • - Best for surgery requires magnification of 4x to 6x
  • - The deep depth of focus reduces eye strain
  • - Adjustable observation distance by rotating the lens barrel
  • - Less aberration and clear image
BLP-4 BLP-6
Pictures
Magnification 4.0x to 4.5x 5.5x to 6.0x
Working Distance (mm) 550 to 350 550 to 350
Field of View Diameter (mm) Ф80 to 50 Ф40 to 25
BLP-4
Magnification 4.0x to 4.5x
Working Distance (mm) 550 to 350
Field of View Diameter (mm) Ф80 to 50
BLP-6
Magnification 5.5x to 6.0x
Working Distance (mm) 550 to 350
Field of View Diameter (mm) Ф40 to 25
