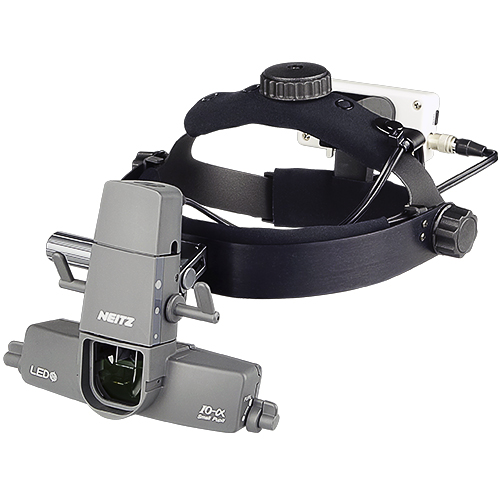

Neitz Binocular Indirect Ophthalmoscope IO-α LED

Unique Optical Design Enables to Observe Complex Fundus

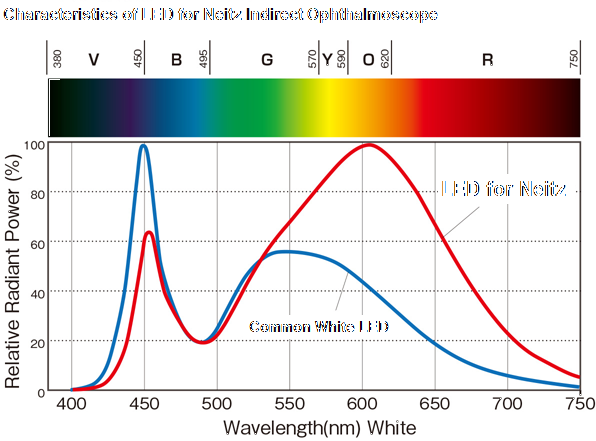

- An LED with the color of incandescent is used
- Clear illumination without filamant shadow

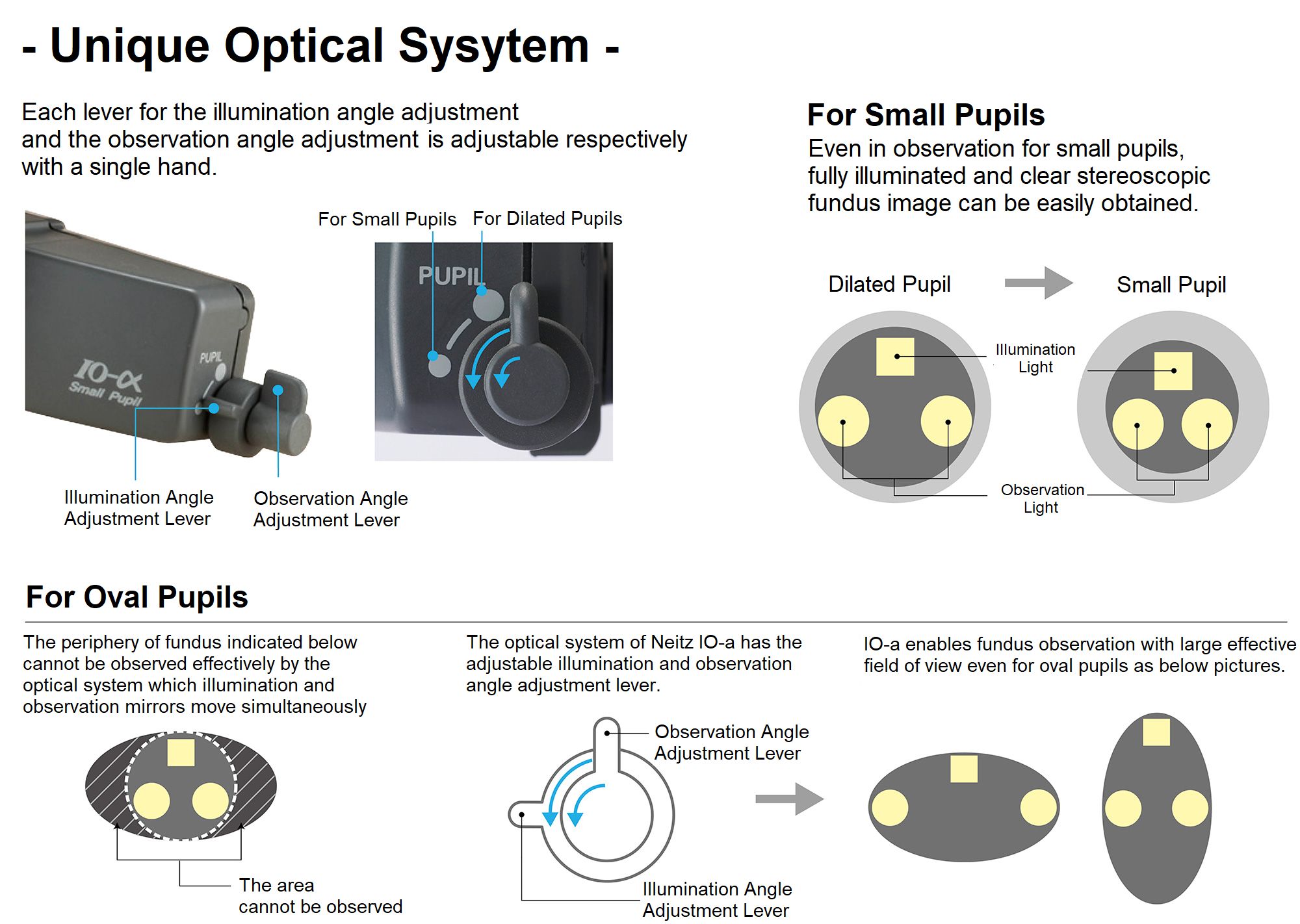

- Stereoscopic observation even for small pupils by moving the knobs of the illumination and observation systems separately
- Large effective visual field for observation of flat pupils
- 17 hours of continuous illumination with the energy-efficient LED

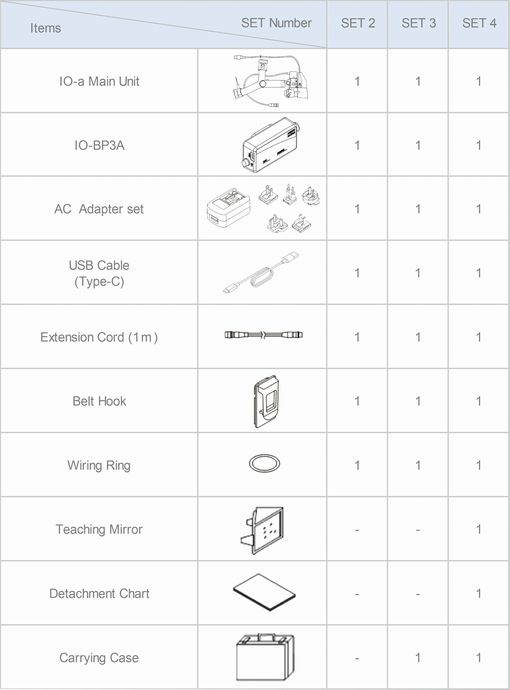

Contents (Set 4)

IO-α LED, battery pack, AC adapter, extension cable, belt hook,

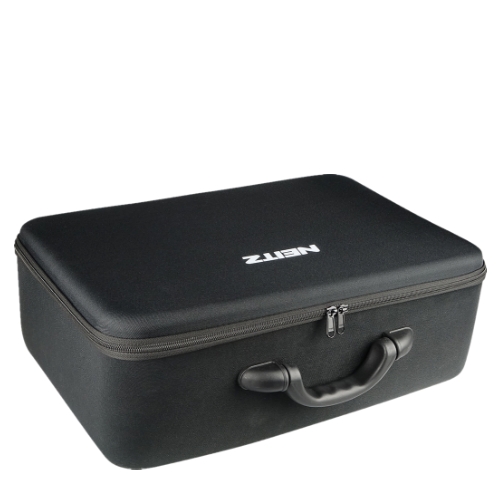

wiring ring, teaching mirror, detachment chart, carrying case

Light Source

3W LED

Voltage during Illuminating

DC3.2V 0.7W

Filters

UV, Red-free, Cobalt Blue

Maximum Light Intensity

Approx. 600 lx
(using UV filter, at 500 mm distance)

Minimum Pupil Diameter

2 mm

Diameter of the Illumination Field

Switchable in three steps: 19 mm, 50 mm, and 80 mm
(at 500 mm distance from the illuminating mirror)

Dimensions

164 mm x 111.5 mm x 58 mm
(excluding headband)

Weight

480 g

Supplementary Information
